horizont 12 V solar electric fence energiser – ranger® AS3000
More runtime. Less effort. Maximum safety – for a relaxed and low-maintenance grazing season.
- Over 10 days running time - even without sun
- 5 operating modes incl. adaptive energy-saving mode
- Includes a powerful 36 Ah battery
The ranger® AS3000 is a reliable solution for both mobile and stationary electric fences. Featuring a 30-watt monocrystalline solar panel, 12 V battery operation, and 3 joules of output energy, it ensures high fence voltage and maximum containment safety—even under demanding conditions.

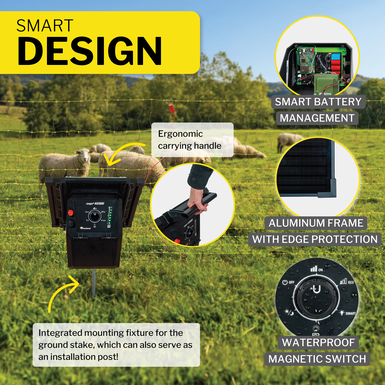

The ergonomically designed carrying handle integrated into the housing makes the unit flexible and easy to transport.
Whether for long operating periods, changing weather conditions, or seasonal use, the ranger® AS3000 is designed for maximum operational reliability and ease of use in everyday applications.
Maximum autonomy & operational reliability
>10 days runtime – even without sunlight
Even normal daylight charges the battery. This means the device works in cloudy weather and can operate for up to 10 days without direct sunlight.
Large battery compartment for greater capacity
More reserves mean longer autonomy and reliable fence operation—ideal for extended use.
Quick battery replacement – minimal downtime
Especially practical when used with a spare battery. Simply swap the battery and continue working immediately.
Highly efficient MPPT charge controller – maximum solar yield
Extracts noticeably more energy from the 30 W solar panel—especially under fluctuating sunlight conditions. The battery remains efficient for longer.
Temperature-compensated charging – reliable in cold & heat
Optimized charging throughout the entire season. Protects the battery and improves long-term availability.
Integrated lightning protection
Protects the electronics from damage caused by lightning or voltage spikes and increases the device’s operational reliability.
Deep discharge protection
Reliably protects the battery from harmful deep discharge and extends its lifespan—especially important during prolonged periods of bad weather.
Adaptive energy-saving mode
Automatically regulates energy output depending on fence conditions, saving power without compromising safety.
Intelligent technology for efficient operation

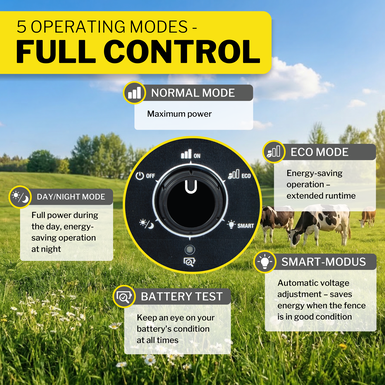

5 operating modes for every application
Flexibly adjustable to animal type, fence length, vegetation, and season—always the right mode.
- Normal Mode: Full power for maximum fence performance
- Eco Mode: Energy-saving operation for longer runtime
- Smart Mode: Automatic power adjustment based on fence condition
- Battery Test: Check the battery status anytime with ease
- Day/Night Mode: Full power during the day, reduced energy use at night
Adaptive energy-saving mode – adjusts to the fence
Automatically regulates energy output depending on fence condition and saves power without affecting containment safety.
Low battery warning – before the fence weakens
Allows early response and timely recharging or replacement—for greater operational safety.
Separate error LED – immediate fault detection
Clear error indication instead of guesswork. Faster diagnosis, less downtime.
Everyday ease of use
Rotary switch operation: set and go
No menus, no searching—robust and intuitive operation.
Smart display with automatic brightness adjustment
Easy to read day and night—while saving energy.
9 extra-bright LEDs with wide viewing angle
Fence and battery voltage at a glance—even visible from an angle.
Simple installation: connect the battery, mount the solar panel with 4 screws, and you’re ready to go
Quick to install, low risk of errors—ideal for seasonal adjustments.
Lightweight and easy to carry – flexible for rotational grazing
Easy transport and quick relocation—perfect for everyday practical use.
With the ranger® AS3000, you benefit from reliable solar power, maximum autonomy, and secure fence voltage—day after day.
Technical data at a glance
- Output energy: 3 joules
- Solar panel: 30 W monocrystalline
- Operating voltage: 12 V battery operation
- Multiple operating modes including energy-saving function
- MPPT charge controller with temperature compensation

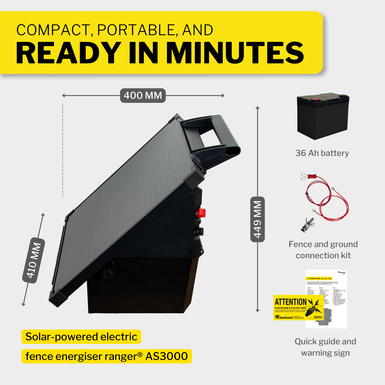

Scope of delivery
- Solar fence energiser ranger® AS3000
- 36 Ah battery
- Fence and ground connection set
- Quick guide
- Warning sign
NOTE:
The energiser must be disconnected from the fence when charging with a charger. Do not place the energiser directly on the ground. In heavy rain, water or dirt may enter under certain conditions and cause damage.
- Over 10 days running time - even without sun
- 5 operating modes incl. adaptive energy-saving mode
- Includes a powerful 36 Ah battery
- 30 W solar panel with MPPT charge controller
- Temperature-compensated charging
- Robust rotary switch operation & simple installation
- Deep discharge switch-off and energy-saving mode
- Robust solar panel with aluminium frame and edge protection

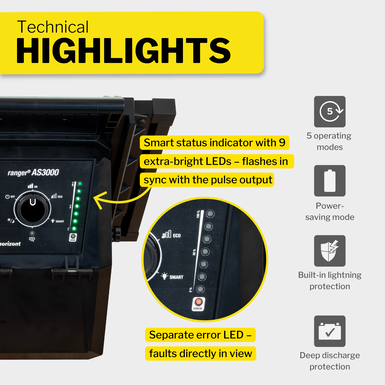

- Intelligent status display with 9 extra-bright LEDs
Warning and safety information energiser
- Follow the instructions for use
- Warning of electrical voltage
- This warning stands for possible harmful situations caused by electrical voltage, which can lead to serious injury or death if not observed!
- Fire hazard warning
- Warning - there is a risk of smouldering fire if heat builds up. The appliance must not be covered by materials etc. during operation, as this can lead to heat build-up and possibly to fire. Therefore, do not install in areas at risk of fire (e.g. hay and straw stores)
- Warning! Repairs may only be carried out by qualified persons. Only the replacement parts specified by the manufacturer may be used. We reserve the right to make technical changes!
- Please do not cover the electric fence with a plastic bag. Fire hazard due to overheating
Detailed documents can be found in the download area of the product.
Legal notice regarding the battery law
In connection with the sale of batteries or the delivery of devices containing batteries, we are obliged to inform you of the following:
Batteries must not be disposed of with household waste.
You can either return used batteries that we carry or have carried in our range as new batteries to us at your own expense or return them free of charge to our shipping warehouse (shipping address). Alternatively, you can hand in the batteries at your local collection points.
As an end user, you are legally obliged to return used batteries so that they can be recycled or disposed of properly.
Used batteries may contain harmful substances that can damage the environment or your health if not stored or disposed of properly. However, batteries also contain important raw materials such as iron, zinc, manganese or nickel and can be recycled.
The symbols on the batteries have the following meanings:
The symbol of the crossed-out wheelie bin means that the battery must not be disposed of with household waste.
For batteries containing a certain amount of lead, cadmium or mercury, the following additions below the symbol with the crossed-out wheelie bin indicate the respective pollutants:
Pb = Battery contains more than 0.004% lead by weight
Cd = Battery contains more than 0.002% cadmium by weight
Hg = Battery contains more than 0.0005% mercury by weight
Information on the costs involved in accordance with Article 56 (4) of the EU Battery Regulation (Regulation 2023/1542) can be found at the ‘Batterie-Zurück’ initiative.
