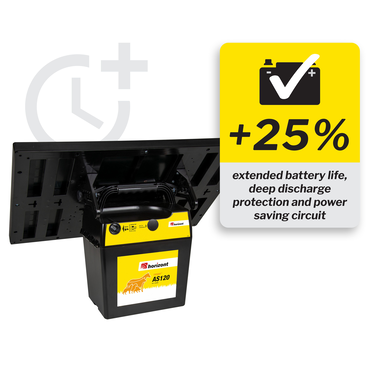

horizont 12 V solar energiser with battery - ranger® AS120
Environmentally friendly solar technology & now +25% longer battery life
- +25% longer battery life thanks to optimised circuit board, high-quality electronics and software-controlled energy management
- Maximum battery safety thanks to integrated deep discharge protection and intelligent power-saving circuitry
- Ready for immediate use thanks to integrated 20-watt solar module – no external power source required
The horizont ranger® AS120 is the ideal solar-powered energiser for farmers and hobby livestock owners who want a reliable, self-sufficient and efficient energy supply. Thanks to its integrated solar module, the device is ready for immediate use – perfect for remote or off-grid pastures.
Optimised electronics for maximum runtime
Thanks to an optimised circuit board, high-quality electronic components and software-controlled energy management, the ranger® AS120 now has an impressive +25% longer battery life.
The integrated deep discharge protection reliably protects the battery from damage, while the intelligent power-saving circuit automatically adjusts energy consumption to the fence load – for maximum efficiency and operational reliability.
Intelligent solar technology – self-sufficient & powerful
The integrated 20-watt solar module is fully assembled and ready for immediate use.
Four selectable angles of inclination ensure that you can make optimum use of solar energy at all times.
For transport and storage, the panel can be folded into a special transport position – particularly practical and gentle.
Safe installation & high stability
The ranger® AS120 comes with a sturdy U-shaped ground stake that provides a secure hold even on uneven ground and ensures optimum earthing.
For larger pastures or dry soils, we recommend additional T-shaped ground stakes.
ECO Power Mode – efficient & environmentally friendly
The integrated ECO Power Mode intelligently adjusts power consumption to the condition of the fence.
This means lower energy consumption, lower operating costs and particularly sustainable operation.
Practical battery indicator & easy charging
The 3-stage battery indicator provides a quick overview of the current charge status at all times.
If necessary, the battery can be conveniently recharged via the integrated DC socket using the supplied 230 V plug-in power supply.
Robust quality for continuous use
Made from high-quality, weather-resistant materials, the ranger® AS120 is particularly durable and reliable – ideal for daily use in changing weather conditions.
Everything included – ready to go
Included in delivery:
- ranger® AS120 energiser
- 20-watt solar module
- 12 V / 34 Ah battery
- Ground stake (double spike)
- Fence and earth connection cable
- Power supply unit
- Operating instructions
Secure your pasture with the ranger® AS120 – powerful solar technology, optimised electronics and now 25% more battery life for maximum supply reliability.
- +25% longer battery life thanks to optimised circuit board, high-quality electronics and software-controlled energy management
- Maximum battery safety thanks to integrated deep discharge protection and intelligent power-saving circuitry
- Ready for immediate use thanks to integrated 20-watt solar module – no external power source required
- 12,700 V maximum voltage, 1.5 joules input / 1.2 joules output
- Optimal solar energy utilisation with four adjustable panel angles plus practical transport position
- Efficient & sustainable: ECO Power mode automatically adjusts energy consumption to the fence load and reduces cost
- Robust and stable thanks to high-quality, weather-resistant materials and sturdy U-shaped ground stakes; expandable with T-shaped ground stakes
- Complete scope of delivery including 12 V / 34 Ah battery, ground stake (double spike), fence and ground connection cable, and power supply unit – ready to use immediately
- Safe placement of the device even in winches and uneven ground thanks to U-earth pile
- 3-step battery capacity indicator
- High efficiency of the installed solar modules
- Polycarbonate plastic frame
- The modules are mounted on a plastic carrier plate and covered with a transparent plastic layer
- 3 years warranty
Warning and safety information energiser
- Follow the instructions for use
- Warning of electrical voltage
- This warning stands for possible harmful situations caused by electrical voltage, which can lead to serious injury or death if not observed!
- Fire hazard warning
- Warning - there is a risk of smouldering fire if heat builds up. The appliance must not be covered by materials etc. during operation, as this can lead to heat build-up and possibly to fire. Therefore, do not install in areas at risk of fire (e.g. hay and straw stores)
- Warning! Repairs may only be carried out by qualified persons. Only the replacement parts specified by the manufacturer may be used. We reserve the right to make technical changes!
- Please do not cover the electric fence with a plastic bag. Fire hazard due to overheating
Detailed documents can be found in the download area of the product.
