horizont 9 V / 12 V / 230 V electric fence - ranger® ABN60

Item No. 10983

Suitable for:

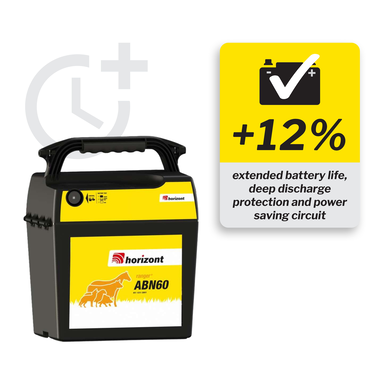

Versatile, powerful, and now with 12% longer battery life

+12% longer battery life thanks to optimized circuit board, high-quality electronics, and software-controlled energy management
Maximum battery safety thanks to integrated deep discharge protection and intelligent power saving circuitry
Integrated power-saving circuit adjusts power consumption to the pasture fence

All product details

The ranger® ABN60 is your reliable partner for secure pasture fences and offers maximum flexibility, efficiency, and convenience. Whether for hobby animal husbandry or professional use, this device impresses with its durable quality and innovative technology.

Optimized electronics for greater endurance and maximum operational reliability
Thanks to the optimization of the circuit board, the use of high-quality electronic components, and software-controlled energy management, the ranger® ABN60 now has +12% more battery life.
The integrated deep discharge protection reliably protects the battery and prevents power loss. The intelligent power-saving circuit automatically adjusts energy consumption to the fence load – for maximum efficiency and longer operating cycles.

Outstanding flexibility in power supply
The ranger® ABN60 can be operated flexibly with:

9-volt battery

12-volt rechargeable battery or battery

230-volt mains power

For maximum autonomy, a solar panel can also be mounted directly on the carrying handle. The energiser automatically detects the solar source and switches to solar mode on its own – ideal for remote pastures.

Convenient monitoring & easy operation
The 4-stage LED “Energy Control” display shows you the battery status and device performance at all times.
Thanks to the practical on/off switch and ergonomic carrying handle, the device is easy to transport and operate – even with the battery inserted.

Robust construction for demanding conditions
Made from UV-resistant, splash-proof, impact-resistant, and oil-resistant plastics, the ranger® ABN60 offers impressive durability—ideal for tough, continuous outdoor use.

Powerful for long fences
Recommended for fence lengths of up to 6.5 km (with optimal installation), the device offers reliable protection for a wide variety of livestock. A ground stake is included in the scope of delivery to maximize herd safety.

Everything you need to get started right away
The scope of delivery includes:

ranger® ABN60 energiser
Fence connection cable
Ground connection cable
Ground stake
Operating instructions

Secure your pasture with the ranger® ABN60 – more flexibility, more control, more endurance.

+12% longer battery life thanks to optimized circuit board, high-quality electronics, and software-controlled energy management
Maximum battery safety thanks to integrated deep discharge protection and intelligent power saving circuitry
Integrated power-saving circuit adjusts power consumption to the pasture fence
Maximum voltage 11,000 volts, 0.65 joules input, 0.6 joules output
Integrated deep discharge protection effectively protects your battery
Robust outdoor quality: UV-resistant, splash-proof, impact-resistant, and oil-resistant—perfect for harsh operating conditions
Integrated power-saving circuit adjusts power consumption to the pasture fence
Emergency operation mode
Easy control and operation thanks to 4-stage “Energy Control” LED display and integrated on/off switch
Mounting device for solar panel
Plug-in profile for ground rod in housing
Housing can be secured with a padlock
Retaining plate in the interior provides a firm stand for battery and battery
Multi-optional storage compartment for power supply when not in use
Intelligent cable routing prevents squeezed cables and leads from inside the device to the solar panel
Microprocessor control

Warning and safety information energiser

Follow the instructions for use
Warning of electrical voltage
This warning stands for possible harmful situations caused by electrical voltage, which can lead to serious injury or death if not observed!
Fire hazard warning
Warning - there is a risk of smouldering fire if heat builds up. The appliance must not be covered by materials etc. during operation, as this can lead to heat build-up and possibly to fire. Therefore, do not install in areas at risk of fire (e.g. hay and straw stores)
Warning! Repairs may only be carried out by qualified persons. Only the replacement parts specified by the manufacturer may be used. We reserve the right to make technical changes!
Please do not cover the electric fence with a plastic bag. Fire hazard due to overheating

Detailed documents can be found in the download area of the product.
